7  Assembly Interface

7.1 Summary

This is a demonstration of vocabulary concept for the interface.

7.2 Methodology

7.3 Business Questions

7.4 Vocabulary

• mission:Interface
• mission:Presents
• mission:Junction

Vocabulary

7.5 Descriptions

Pattern from kepler-16b

• [Component C1] [C1.presents.if01] [C1.if01]
• [Component C2] [C2.presents.if01] [C2.if01]
• [C1.C2.J1] [mission:Join1] [C1.if01]
• [C1.C2.J1] [mission:Join2] [C2.if01]

    instance orbiter-spacecraft.telemetryOut : mission:Interface [
        base:hasIdentifier "I.02"
        base:hasCanonicalName "Telemetry Out"
    ]
    relation instance orbiter-spacecraft.presents.telemetryOut : mission:Presents [
        from components:orbiter-spacecraft
        to orbiter-spacecraft.telemetryOut
    ]

    instance orbiter-ground-data-system.telemetryIn : mission:Interface [
        base:hasIdentifier "I.04"
        base:hasCanonicalName "Telemetry In"
    ]
    relation instance orbiter-ground-data-system.presents.telemetryIn : mission:Presents [
        from components:orbiter-ground-data-system
        to orbiter-ground-data-system.telemetryIn
    ]

    relation instance orbiter-ground-data-system.orbiter-spacecraft.telemetry.downlink : mission:Junction [
        from interfaces:orbiter-spacecraft.telemetryOut
        to interfaces:orbiter-ground-data-system.telemetryIn
        base:hasIdentifier "J.02"
        base:hasCanonicalName "Orbiter Telemetry Downlink"
    ]


7.5.1 Automate Description Process

source("../../osr_common.R")

7.5.2 Import from github

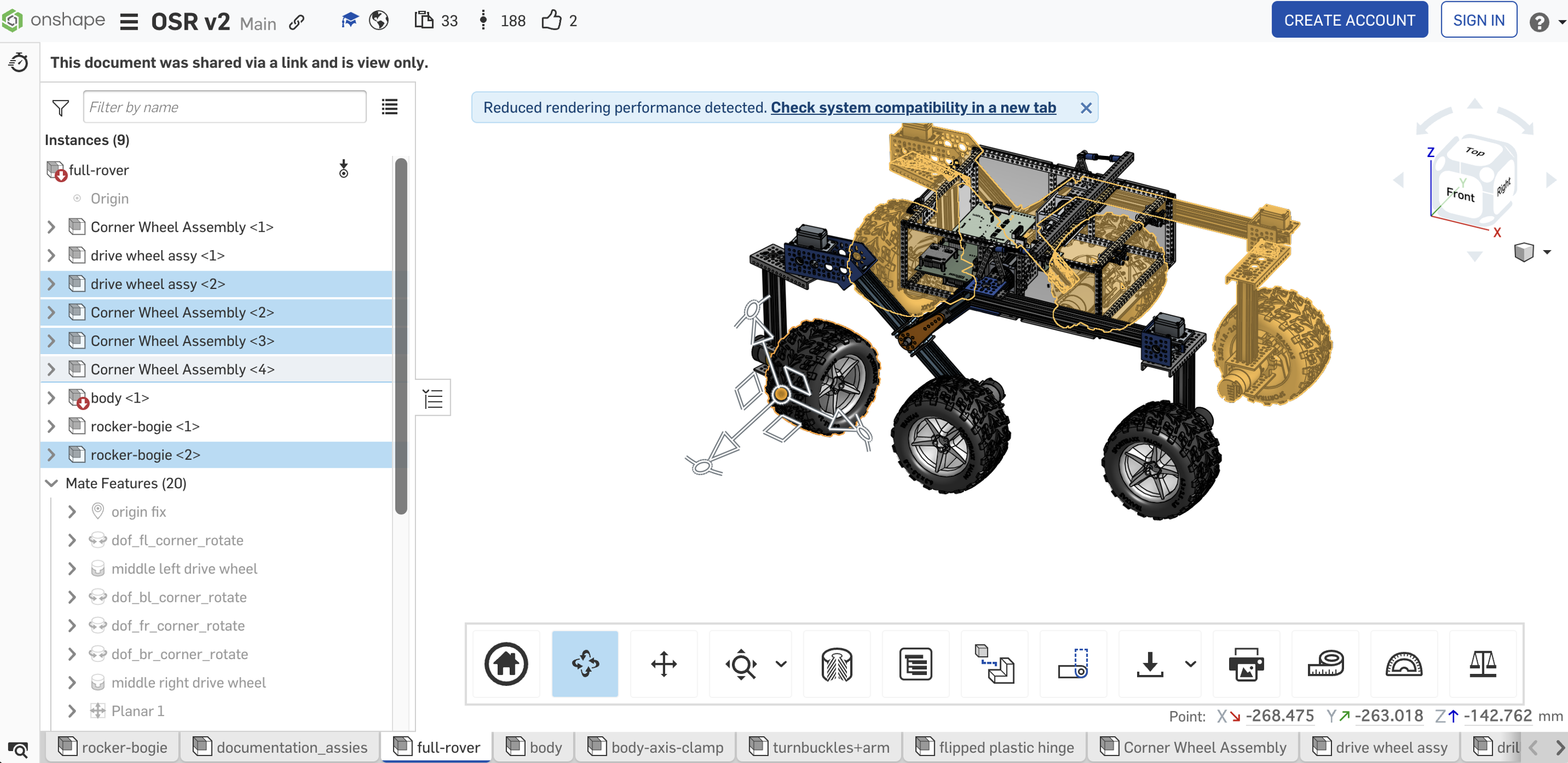

Get information of interfaces from CAD Model

7.5.3 Get Assembly Descriptions from model

library(omlhashiR)
# oml_repository <- "../open-source-rover/"
oml_repository <- omlrepo
omlhashiR::oml_refresh()

[1] "kill success for pid=24944"

omlhashiR::oml_stop_Daemon(oml_repository)

[1] "Stopping Daemon(s)" "1 Daemon stopped"

omlhashiR::oml_build(oml_repository)

 [1] "Starting a Gradle Daemon, 29 stopped Daemons could not be reused, use --status for details"
 [2] "> Task :omlZip UP-TO-DATE"
 [3] "> Task :assemble UP-TO-DATE"
 [4] "> Task :downloadDependencies UP-TO-DATE"
 [5] "> Task :omlToOwl UP-TO-DATE"
 [6] "> Task :owlReason UP-TO-DATE"
 [7] "> Task :check UP-TO-DATE"
 [8] "> Task :build UP-TO-DATE"
 [9] ""
[10] "BUILD SUCCESSFUL in 3s"
[11] "4 actionable tasks: 4 up-to-date"

omlhashiR::oml_startFuseki(oml_repository)

[1] ""
[2] "> Task :startFuseki"
[3] "Fuseki server has now successfully started with pid=25351, listening on http://localhost:3030"
[4] ""
[5] "BUILD SUCCESSFUL in 3s"
[6] "1 actionable task: 1 executed"

omlhashiR::oml_owlLoad(oml_repository)

[1] "> Task :downloadDependencies UP-TO-DATE"
[2] "> Task :omlToOwl UP-TO-DATE"
[3] "> Task :owlReason UP-TO-DATE"
[4] ""
[5] "> Task :owlLoad"
[6] "Loaded 22 owl file(s), unloaded 0 owl file(s)"
[7] ""
[8] "BUILD SUCCESSFUL in 1s"
[9] "4 actionable tasks: 1 executed, 3 up-to-date"

7.6 Query

library(tansakusuR)
endpoint_url <- "http://localhost:3030/open-source-rover/sparql"

query_string <-'
PREFIX base:        <http://imce.jpl.nasa.gov/foundation/base#>
PREFIX mission:     <http://imce.jpl.nasa.gov/foundation/mission#>
PREFIX structure:   <http://opencaesar.io/open-source-rover/vocabulary/structure#>
PREFIX rdfs:        <http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT ?c1_localname ?c1_id ?c1_name ?c1_type ?c2_localname ?c2_id ?c2_name
WHERE {
    ?c1 a structure:Assembly ;
      base:hasIdentifier ?c1_id;
      base:hasCanonicalName ?c1_name .
    OPTIONAL{
        ?c1 base:isContainedIn ?c2 .
        OPTIONAL{
            ?c2 base:hasIdentifier ?c2_id;
                base:hasCanonicalName ?c2_name .
        }
    }
    # Extract the local name
    BIND(STRAFTER(STR(?c1), "#") AS ?c1_localname) .
    BIND(STRAFTER(STR(?c2), "#") AS ?c2_localname) .

    OPTIONAL {
        ?c1 a structure:System ;
            BIND("structure:System"  AS ?c1_type) .
    }
    OPTIONAL {
        ?c1 a structure:Subsystem ;
            BIND("structure:Subsystem"  AS ?c1_type) .
    }
    OPTIONAL {
        ?c1 a structure:Assembly ;
            BIND("structure:Assembly"  AS ?c1_type) .
    }
    OPTIONAL {
        ?c1 a structure:Part ;
            BIND("structure:Part"  AS ?c1_type) .
    }
}
ORDER BY ?c2_localname
'
df_query <- tansakusuR::send_query(endpoint_url,query_string)
datatable(df_query, options = list(pageLength = 20))

7.6.1 Create a workbook for define interfaces

df_worksheet <-data.frame(
  c1 = "",
  c2 = ""
)


df_worksheet <- df_worksheet %>%
  add_row(c1 = "body-assembly", c2 = "rocker-bogie-suspension-assembly-1") %>%
  add_row(c1 = "body-assembly", c2 = "rocker-bogie-suspension-assembly-2") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-1", c2 = "corner-wheel-assembly-1") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-1", c2 = "corner-wheel-assembly-4") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-1", c2 = "drive-wheel-assembly-1") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-2", c2 = "corner-wheel-assembly-2") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-2", c2 = "corner-wheel-assembly-3") %>%
  add_row(c1 = "rocker-bogie-suspension-assembly-2", c2 = "drive-wheel-assembly-2")

df_worksheet <- df_worksheet[-1,] %>%
  mutate(junction_id = paste0("J.", sprintf("%03d", row_number()))) %>%
  mutate(junction_name = paste0("junction", sprintf("%03d", row_number())))


df_worksheet

                                  c1                                 c2
2                      body-assembly rocker-bogie-suspension-assembly-1
3                      body-assembly rocker-bogie-suspension-assembly-2
4 rocker-bogie-suspension-assembly-1            corner-wheel-assembly-1
5 rocker-bogie-suspension-assembly-1            corner-wheel-assembly-4
6 rocker-bogie-suspension-assembly-1             drive-wheel-assembly-1
7 rocker-bogie-suspension-assembly-2            corner-wheel-assembly-2
8 rocker-bogie-suspension-assembly-2            corner-wheel-assembly-3
9 rocker-bogie-suspension-assembly-2             drive-wheel-assembly-2
  junction_id junction_name
2       J.001   junction001
3       J.002   junction002
4       J.003   junction003
5       J.004   junction004
6       J.005   junction005
7       J.006   junction006
8       J.007   junction007
9       J.008   junction008

7.6.2 Generate Description of interface and junction

# Generate color table
look <- data.frame(
  assembly = df_query$c1_localname,
  id = df_query$c1_id
)

# Set Colors
df_tidy <-df_worksheet %>%
  mutate(id = look$id[match(unlist(df_worksheet$c1), look$assembly)])

# sourceの種類ごとにidを振る関数
set_id <- function(source,source_id) {
  # sourceの値をindexに変換
  index <- "IF."
    # 連番を生成
  number <- seq_along(source)
  # sprintf関数でゼロ埋めする
  number_padded <- sprintf("%03d", number)
  # indexとnumberを結合してidを返す
  paste0(index, source_id, ".", number_padded)
}

# sourceの種類ごとにidを振る関数
set_interface_name <- function(source,source_id) {
  # sourceの値をindexに変換
  index <- ".if"
    # 連番を生成
  number <- seq_along(source)
  # sprintf関数でゼロ埋めする
  number_padded <- sprintf("%03d", number)
  # indexとnumberを結合してidを返す
  paste0(source, index, number_padded)
}

# sourceの種類ごとにidを振る関数
set_presents_interface_name <- function(source,source_id) {
  # sourceの値をindexに変換
  index <- ".if"
    # 連番を生成
  number <- seq_along(source)
  # sprintf関数でゼロ埋めする
  number_padded <- sprintf("%03d", number)
  # indexとnumberを結合してidを返す
  paste0(source, ".presents", index, number_padded)
}

df_tidy <- data.frame(
  source = df_worksheet$c1,
  target = df_worksheet$c2,
  junction = df_worksheet$junction_id
) %>%
  add_row(source = df_worksheet$c2, target = df_worksheet$c1, junction=df_worksheet$junction_id)

df_tidy <- df_tidy %>%
  mutate(source_id = look$id[match(unlist(df_tidy$source), look$assembly)]) %>%
  mutate(target_id = look$id[match(unlist(df_tidy$target), look$assembly)]) %>%
  arrange(source_id) %>%
  # sourceの種類ごとにグループ化する
  group_by(source) %>%
  # 新しい列にidを振る
  mutate(interface_id = set_id(source,source_id)) %>%
  mutate(interface_name = set_interface_name(source,source_id)) %>%
  mutate(interface_presents = set_presents_interface_name(source,source_id)) %>%
  # グループ化を解除する
  ungroup()

7.6.3 Initialize OML File

outputdir <- paste0(omlrepo,"src/oml/opencaesar.io/open-source-rover/description/assembly/")

outputfile <- paste0(outputdir, "interface.oml")
init_oml_file <-
"description <http://opencaesar.io/open-source-rover/description/assembly/interface.oml#> as interface {\n}\n"
cat(file=outputfile, init_oml_file)

7.6.4 Generate framework of interface.oml

omldescriptions <-
"description <http://opencaesar.io/open-source-rover/description/assembly/interface#> as interface {

  uses <http://imce.jpl.nasa.gov/foundation/base#> as base
  uses <http://imce.jpl.nasa.gov/foundation/mission#> as mission
  extends <http://opencaesar.io/open-source-rover/description/assembly/assembly#> as assembly

"

7.6.5 Function to generate structure:Part descriptions

    instance AssyA1.if02 : mission:Interface[
        base:hasIdentifier "IF.A.01.02"
        base:hasCanonicalName "A1 IF02"
    ]

    relation instance AssyA1.presents.if01 : mission:Presents[
        from  AssyA1
        to AssyA1.if01
    ]



generateInterfaceDescriptions <- function(df, header){

  df_in <- df

  text <- paste0("// ", header, "\n")
  text_instance <- ""
  text_ref <- ""

#  id_count <- 1
  type <- "mission:Interface"
  ref_type <- "mission:Presents"

  for (i in 1:nrow(df_in)){
# index <- "A"
#    id <- paste0(index, ".", formatC(i, width = 2, flag="0"))
    text_instance <- paste0(text_instance,
                   "    instance ", df_in$interface_name[i], " : ", type, " [","\n",
                   "        base:hasIdentifier \"", df_in$interface_id[i],"\"\n",
                   "    ]\n"
                   )
    text_ref <- paste0(text_ref,
                   "    relation instance ", df_in$interface_presents[i], " : ", ref_type, " [","\n",
                   "        from assembly:", df_in$source[i],"\n",
                   "        to ", df_in$interface_name[i],"\n",
                   "    ]\n"
                   )
  }

  # text_ref <- paste0(text_ref,
  #                  "  ]\n\n"
  #                  )

  text <- paste0(text, text_instance, text_ref)
  return(text)
}

header <- c("Interface - Assembly")
instance <- generateInterfaceDescriptions(df_tidy, header)
omldescriptions <- paste0(omldescriptions, instance,"\n")

generateJunctionDescriptions <- function(df, header){

  df_in <- df

  text <- paste0("// ", header, "\n")
  text_instance <- ""
  text_ref <- ""

#  id_count <- 1
  type <- "mission:Junction"

  for (i in 1:nrow(df_in)){
# index <- "A"
#    id <- paste0(index, ".", formatC(i, width = 2, flag="0"))
    text_instance <- paste0(text_instance,
                   "    instance ", df_in$junction_name[i], " : ", type, " [","\n",
                   "        mission:joins1 ", df_in$join1[i],"\n",
                   "        mission:joins2 ", df_in$join2[i],"\n",
                   "    ]\n"
                   )
  }

  # text_ref <- paste0(text_ref,
  #                  "  ]\n\n"
  #                  )

  text <- paste0(text, text_instance, text_ref)
  return(text)
}

7.6.6 Create Junction join1 and join2

df_junction <- df_worksheet %>%
  left_join(df_tidy, by =c("junction_id" = "junction", "c1" = "source"), keep=FALSE) %>%
  mutate(join1 = interface_name) %>%
  select(c(colnames(df_worksheet),"join1")) %>%
  left_join(df_tidy, by =c("junction_id" = "junction", "c2" = "source"), keep=FALSE) %>%
  mutate(join2 = interface_name) %>%
  select(c(colnames(df_worksheet),"join1","join2"))

header <- c("Junction - Join")
instance <- generateJunctionDescriptions(df_junction, header)
omldescriptions <- paste0(omldescriptions, instance,"\n")

7.7 Generate OML File

omldescriptions <- paste0(omldescriptions,"\n}\n")
cat(omldescriptions)

description <http://opencaesar.io/open-source-rover/description/assembly/interface#> as interface {

  uses <http://imce.jpl.nasa.gov/foundation/base#> as base
  uses <http://imce.jpl.nasa.gov/foundation/mission#> as mission
  extends <http://opencaesar.io/open-source-rover/description/assembly/assembly#> as assembly

// Interface - Assembly
    instance body-assembly.if001 : mission:Interface [
        base:hasIdentifier "IF.A.01.001"
    ]
    instance body-assembly.if002 : mission:Interface [
        base:hasIdentifier "IF.A.01.002"
    ]
    instance drive-wheel-assembly-1.if001 : mission:Interface [
        base:hasIdentifier "IF.A.02.001"
    ]
    instance drive-wheel-assembly-2.if001 : mission:Interface [
        base:hasIdentifier "IF.A.03.001"
    ]
    instance corner-wheel-assembly-1.if001 : mission:Interface [
        base:hasIdentifier "IF.A.04.001"
    ]
    instance corner-wheel-assembly-2.if001 : mission:Interface [
        base:hasIdentifier "IF.A.05.001"
    ]
    instance corner-wheel-assembly-3.if001 : mission:Interface [
        base:hasIdentifier "IF.A.06.001"
    ]
    instance corner-wheel-assembly-4.if001 : mission:Interface [
        base:hasIdentifier "IF.A.07.001"
    ]
    instance rocker-bogie-suspension-assembly-1.if001 : mission:Interface [
        base:hasIdentifier "IF.A.08.001"
    ]
    instance rocker-bogie-suspension-assembly-1.if002 : mission:Interface [
        base:hasIdentifier "IF.A.08.002"
    ]
    instance rocker-bogie-suspension-assembly-1.if003 : mission:Interface [
        base:hasIdentifier "IF.A.08.003"
    ]
    instance rocker-bogie-suspension-assembly-1.if004 : mission:Interface [
        base:hasIdentifier "IF.A.08.004"
    ]
    instance rocker-bogie-suspension-assembly-2.if001 : mission:Interface [
        base:hasIdentifier "IF.A.09.001"
    ]
    instance rocker-bogie-suspension-assembly-2.if002 : mission:Interface [
        base:hasIdentifier "IF.A.09.002"
    ]
    instance rocker-bogie-suspension-assembly-2.if003 : mission:Interface [
        base:hasIdentifier "IF.A.09.003"
    ]
    instance rocker-bogie-suspension-assembly-2.if004 : mission:Interface [
        base:hasIdentifier "IF.A.09.004"
    ]
    relation instance body-assembly.presents.if001 : mission:Presents [
        from assembly:body-assembly
        to body-assembly.if001
    ]
    relation instance body-assembly.presents.if002 : mission:Presents [
        from assembly:body-assembly
        to body-assembly.if002
    ]
    relation instance drive-wheel-assembly-1.presents.if001 : mission:Presents [
        from assembly:drive-wheel-assembly-1
        to drive-wheel-assembly-1.if001
    ]
    relation instance drive-wheel-assembly-2.presents.if001 : mission:Presents [
        from assembly:drive-wheel-assembly-2
        to drive-wheel-assembly-2.if001
    ]
    relation instance corner-wheel-assembly-1.presents.if001 : mission:Presents [
        from assembly:corner-wheel-assembly-1
        to corner-wheel-assembly-1.if001
    ]
    relation instance corner-wheel-assembly-2.presents.if001 : mission:Presents [
        from assembly:corner-wheel-assembly-2
        to corner-wheel-assembly-2.if001
    ]
    relation instance corner-wheel-assembly-3.presents.if001 : mission:Presents [
        from assembly:corner-wheel-assembly-3
        to corner-wheel-assembly-3.if001
    ]
    relation instance corner-wheel-assembly-4.presents.if001 : mission:Presents [
        from assembly:corner-wheel-assembly-4
        to corner-wheel-assembly-4.if001
    ]
    relation instance rocker-bogie-suspension-assembly-1.presents.if001 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-1
        to rocker-bogie-suspension-assembly-1.if001
    ]
    relation instance rocker-bogie-suspension-assembly-1.presents.if002 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-1
        to rocker-bogie-suspension-assembly-1.if002
    ]
    relation instance rocker-bogie-suspension-assembly-1.presents.if003 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-1
        to rocker-bogie-suspension-assembly-1.if003
    ]
    relation instance rocker-bogie-suspension-assembly-1.presents.if004 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-1
        to rocker-bogie-suspension-assembly-1.if004
    ]
    relation instance rocker-bogie-suspension-assembly-2.presents.if001 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-2
        to rocker-bogie-suspension-assembly-2.if001
    ]
    relation instance rocker-bogie-suspension-assembly-2.presents.if002 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-2
        to rocker-bogie-suspension-assembly-2.if002
    ]
    relation instance rocker-bogie-suspension-assembly-2.presents.if003 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-2
        to rocker-bogie-suspension-assembly-2.if003
    ]
    relation instance rocker-bogie-suspension-assembly-2.presents.if004 : mission:Presents [
        from assembly:rocker-bogie-suspension-assembly-2
        to rocker-bogie-suspension-assembly-2.if004
    ]

// Junction - Join
    instance junction001 : mission:Junction [
        mission:joins1 body-assembly.if001
        mission:joins2 rocker-bogie-suspension-assembly-1.if004
    ]
    instance junction002 : mission:Junction [
        mission:joins1 body-assembly.if002
        mission:joins2 rocker-bogie-suspension-assembly-2.if004
    ]
    instance junction003 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-1.if001
        mission:joins2 corner-wheel-assembly-1.if001
    ]
    instance junction004 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-1.if002
        mission:joins2 corner-wheel-assembly-4.if001
    ]
    instance junction005 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-1.if003
        mission:joins2 drive-wheel-assembly-1.if001
    ]
    instance junction006 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-2.if001
        mission:joins2 corner-wheel-assembly-2.if001
    ]
    instance junction007 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-2.if002
        mission:joins2 corner-wheel-assembly-3.if001
    ]
    instance junction008 : mission:Junction [
        mission:joins1 rocker-bogie-suspension-assembly-2.if003
        mission:joins2 drive-wheel-assembly-2.if001
    ]


}

cat(file=outputfile, omldescriptions)

```

7.8 Analysis

7.9 Visualize
