1  OSR mission:Component

source("../../osr_common.R")

1.1 Summary

We described the OSR system structure using IMCE “mission:Component” vocabularies.

1.2 Vocabulary

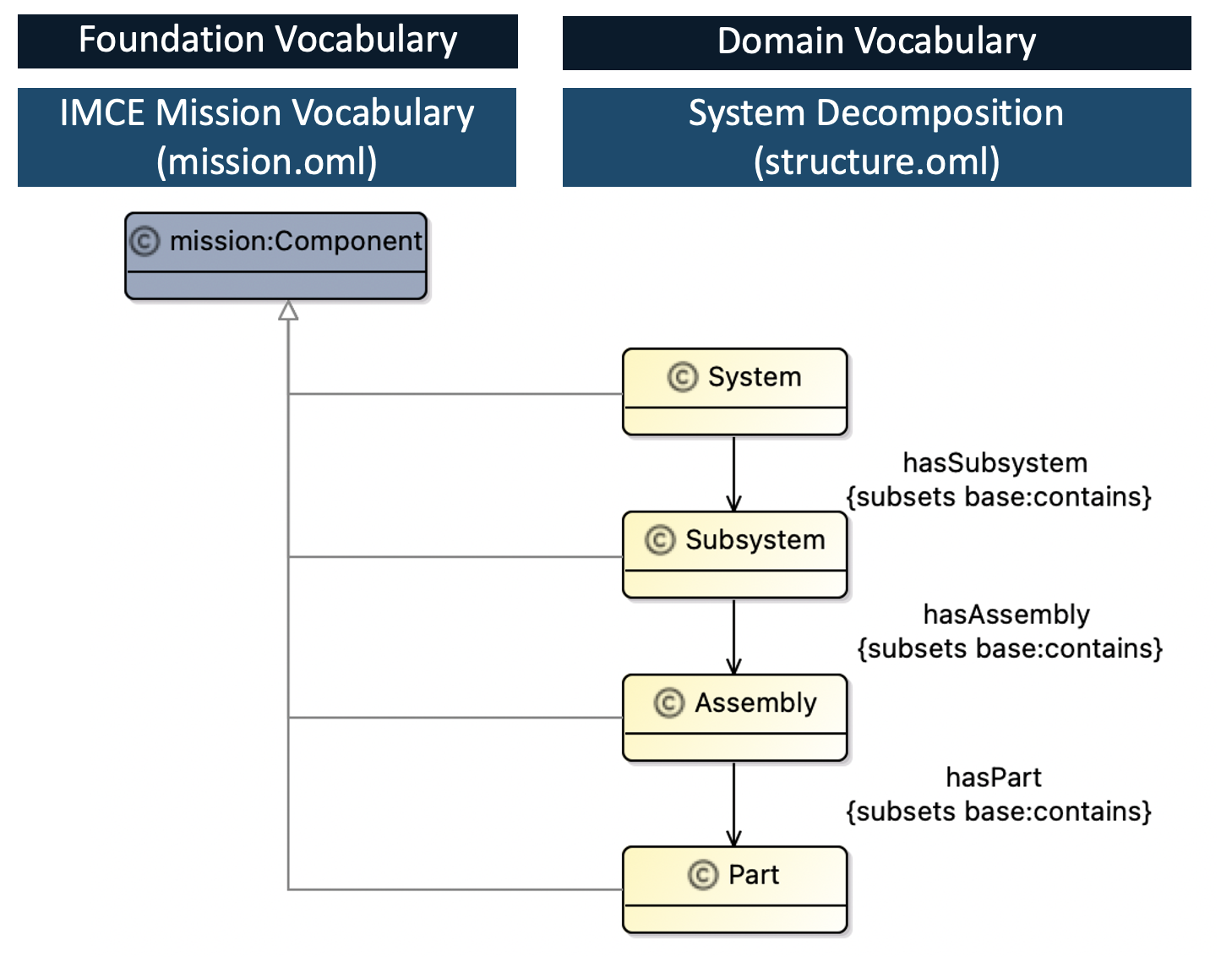

We defined the domain specific vocabularies to describe the OSR system decomposition. We defined “System”, “Subsystem” and “Assembly” concepts as a specialization of a mission:Component as shown in Figure 1.1.

Figure 1.1: Structure Vocabulary

code

1.3 Descriptions

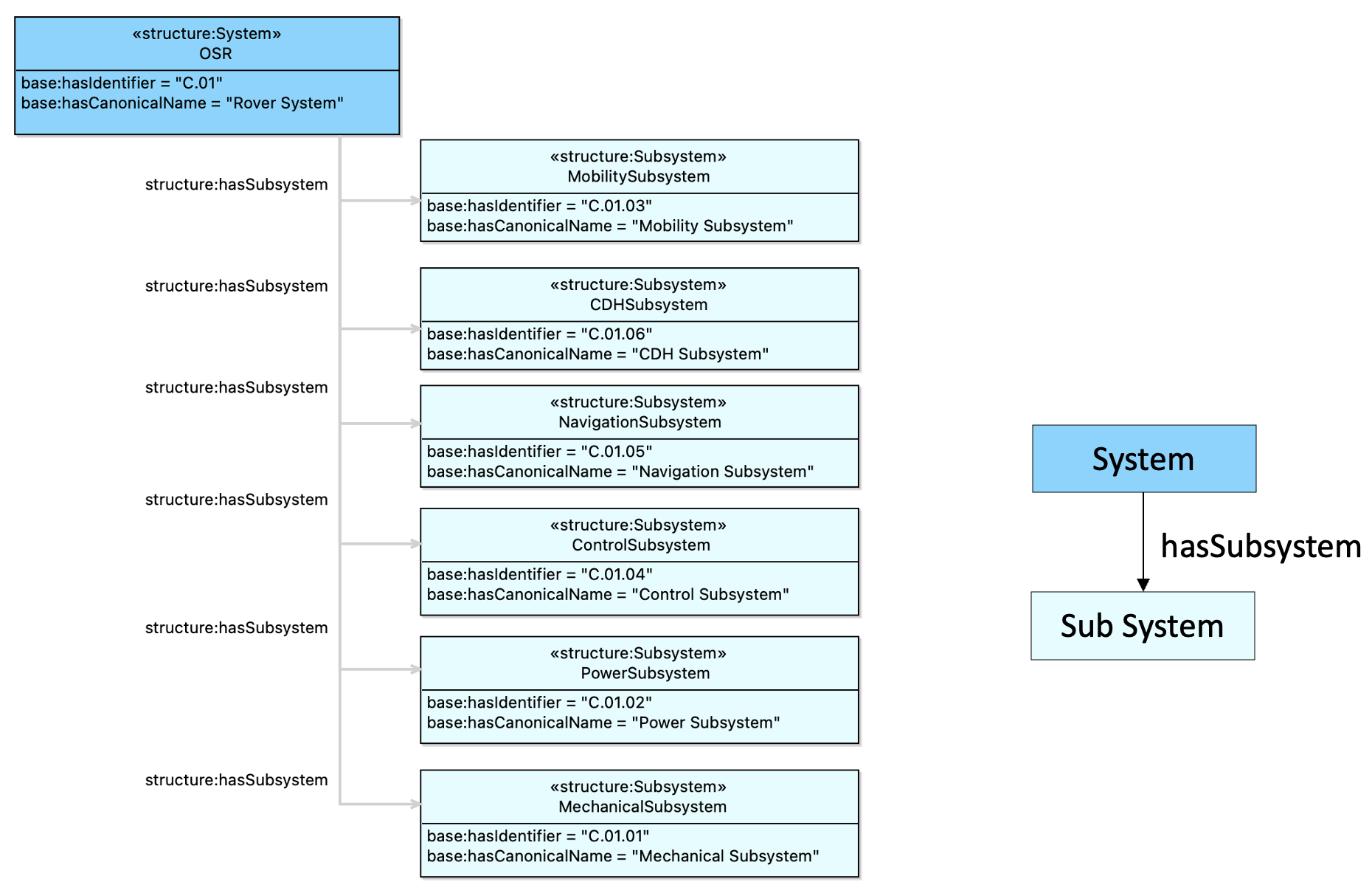

Figure 1.2: OSR System Decomposition

1.4 Analysis

We analyze the hierarchical structure of the mission:Component.

1.4.1 SPARQL Query for “Component contains Component”

component.sparql

PREFIX base:        <http://imce.jpl.nasa.gov/foundation/base#>
PREFIX mission:     <http://imce.jpl.nasa.gov/foundation/mission#>
PREFIX structure:   <http://opencaesar.io/open-source-rover/vocabulary/structure#>
PREFIX rdfs:        <http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT ?c1_localname ?c1_id ?c1_name ?c1_type ?c2_localname ?c2_id ?c2_name
WHERE {
    ?c1 a mission:Component ;
        base:hasIdentifier ?c1_id ;
        base:hasCanonicalName ?c1_name ;

    OPTIONAL{
        ?c1 base:isContainedIn ?c2 ;
        OPTIONAL{
            ?c2 base:hasIdentifier ?c2_id ;
                base:hasCanonicalName ?c2_name .
        }
    }
    # Extract the local name
    BIND(STRAFTER(STR(?c1), "#") AS ?c1_localname) .
    BIND(STRAFTER(STR(?c2), "#") AS ?c2_localname) .

    OPTIONAL {
        ?c1 a structure:System ;
            BIND("System"  AS ?c1_type) .
    }
    OPTIONAL {
        ?c1 a structure:Subsystem ;
            BIND("Subsystem"  AS ?c1_type) .
    }

}
ORDER BY ?c1_id

1.4.2 Read JSON file of Query Results

omlrepo <- "../../../../open-source-rover/"

# output dir for owlQuery specified at resultPath in build.gradle
repo <- paste0(omlrepo, "build/results/")
file <- "component.json"
filepath <- paste0(repo,file)
df <- readQueryResultsFromJson(filepath)
df <- df %>%
  filter(c1_type %in% c("System","Subsystem"))

datatable(df)

1.5 Visualize

Now we visualize data as a tree structure.

# Specify data as a form of parent and child
df_vis <- df %>%
  mutate(owner = paste(c2_id, c2_name),
         name = paste(c1_id, c1_name)) %>%
  select(owner,name,c1_type)

# NA for root in the first column
df_vis$owner[1] <- c(NA)

# This tooltip is shown when hovering on a node of a tree diagram
df_vis$tooltip <- paste0(
  "type: ",
  df_vis$type,
  "<br>name: ",
  df_vis$name
  )

# Using reusable function to produce interactive tree diagrams
plotCollapsibleTreeFromDataframe(df_vis, palette="BluYl",
                                 parent = "owner", child = "name", types = "c1_type",
                                 tooltips = "tooltip")

Figure 1.3: A tree diagram
